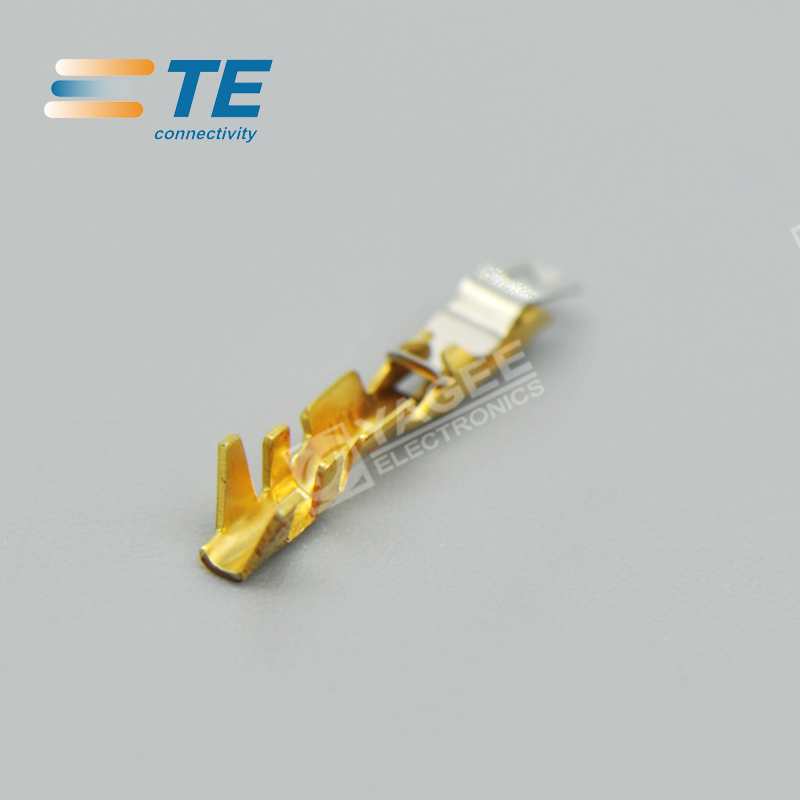

| 产品类型 | 接触件 |
| 端接电阻(mΩ) | 12 |
| 绝缘电阻(MΩ) | 5000 |
| 介质耐压(V) | 750 |
| 柱体尺寸 | .025 in, .64 mm |
| 端子基材 | 磷青铜 |
| PCB 端子端接区域电镀材料 | 镀金 |
| 端子底板材料 | 镍 |
| 端子形状 | 正方形 |
| 导线端子端接区域电镀材料 | 镀金 |
| 端子类型 | 插座 |
| 端子接触部电镀材料 | 金 |
| 端子额定电流（最大值）(A) | 3 |
| 接触弹簧材料 | 不锈钢 |
| 端子接触部电镀厚度(μin) | 30 |
| 焊尾端子电镀厚度 | 镍 |
| 端子种类 | 锁定卡箍 |
| 线缆端接方法 | 压接 |
| 带导线绝缘 | 带有 |
| 线缆尺寸(AWG) | 26 – 22 |
| 线缆尺寸(mm2) | .12 – .4 |
| 绝缘直径 | .97 – 1.57mm[.038 – .062in] |
| 工组温度范围(°C) | -65 – 105 |
| 已批准的标准 | UL E28476 |
| 封装方法 | 活块 |
| 封装数量 | 1000 |
| 注释 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines., Extraction Tool No. 91084-1 is used for removing individual contacts from connector housings and for detaching contacts from mating posts., These contacts must be crimped in accordance with AMP Specification No. 114-25006 in order to function properly in a connector housing. |
