| 面板安装式 | 是 |
| 状态 | Active |
| 部件属性 | 插头 |
| 包装形式 | 袋 |
| UPC | 822348544448 |
| 运行温度范围 | -40° to +125°C |
| 每触点最大电流 | 18.0A |
| 颜色-树脂 | 黑色 |
| 间距-接合界面 | 5.84mm |
| 包装规格 | PK-19429-001 |
| 电路数(最多的） | 12 |
| 销售用图纸 | SD-19429-015 |
| 类别 | 压接外壳 |
| 应用 | Power, 线对线 |
| 产品规格 | PS-19417-001-001 |

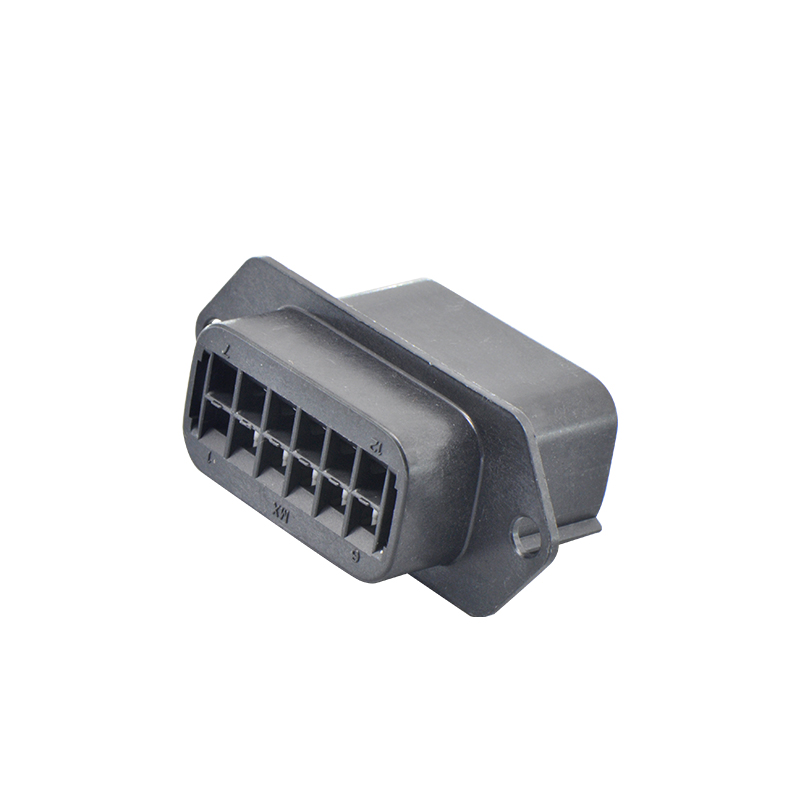

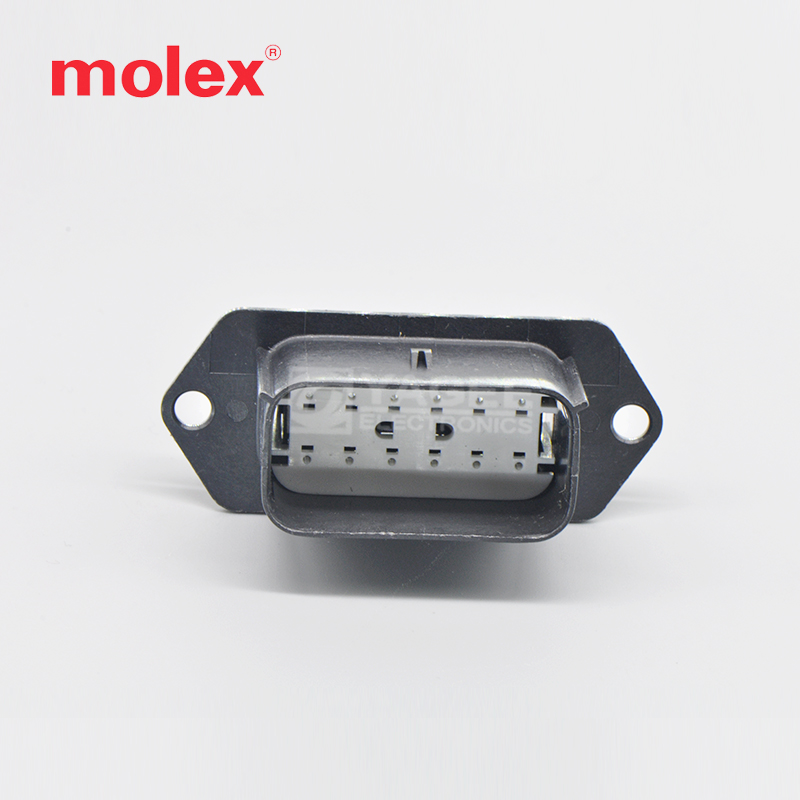

| 概述 | MX150L Industrial Sealed Connector System |
| 可堆叠的 | 否 |
| >系列 | 19429 |
| 有极性的插配件 | 是 |
| 系列 | 19429 |
| 产品名称 | MX150L |
| 行数 | 2 |
| 注解 | For Outside or Inside Panel Mount Application IP67 rated; conforms to UL 1977. NOT suitable for automotive applications with requirements such as USCAR-2, USCAR-25, GMW3191, AK Testing, J2030, Volvo Technology Requirements, and Toyota Connector Spec (, For Outside or Inside Panel Mount Application IP67 rated; conforms to UL 1977. NOT suitable for automotive applications with requirements such as USCAR-2, USCAR-25, GMW3191, AK Testing, J2030, Volvo Technology Requirements, and Toyota Connector Spec ( |
| 锁定插接部位 | 是 |
